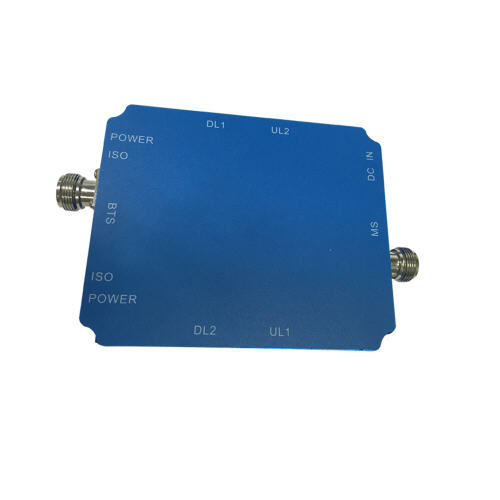

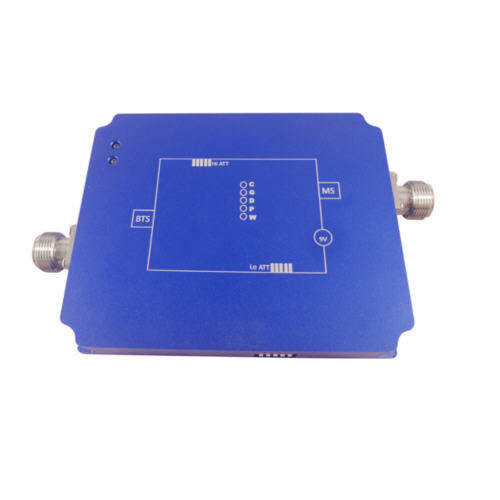

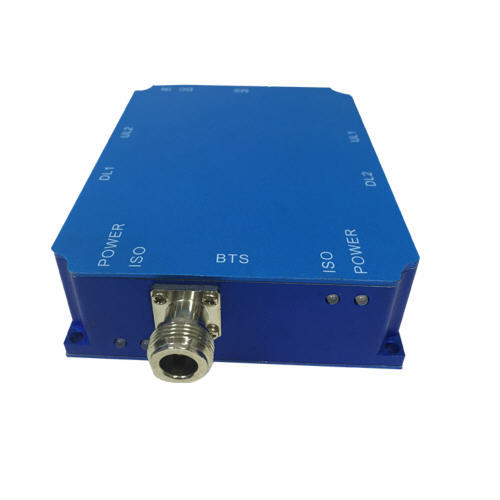

15dBm GSM900MHz Mini Line Amplifier Signal Repeater Booster (GW-15LAG)

Item No.: 00120
Description Specifications
Description

Model:
GW-20LAG


Features:
1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. In-built AGC & ALC function be able to ensure easy installation without setting.
6. Compact size and light weight, easy to install on wall or pole
7. High gain linear power amplifier technique with reliable performance

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Frequency Range Uplink Downlink
GSM 900 890 - 915MHz 935 - 960MHz
Max. Gain 25dB 30dB
Max. Output Power 0dBm 15dBm
Band width Wide Band
Automatic Gain Control >20dB
Ripple in-band <=6dB
Return loss ≤ -10dB
Noise Figure ≤ 6dB
Spurious Emission
& Intermodulation
9KHz~1GHz ≤ -36dBm
  1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Power Supply AC100-240V,50/60Hz; DC9V/1A
Power LED Power indicator
Mechanical Specification
RF Connector N-Female
Impedance 50 ohm
Humidity < 90%
Operating Temperature -10ºC~55ºC
Environment Conditions IP40
Size 119mm*32mm*104mm
Weight < 1Kg
