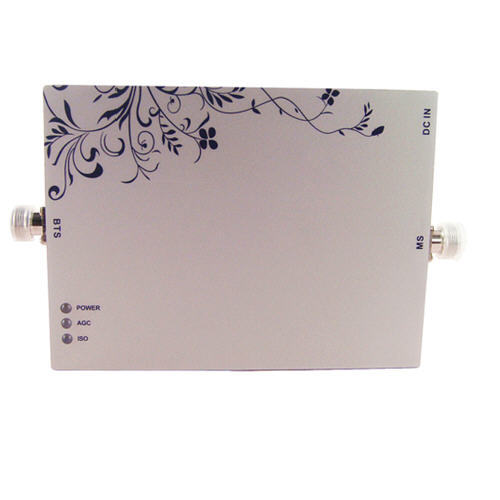

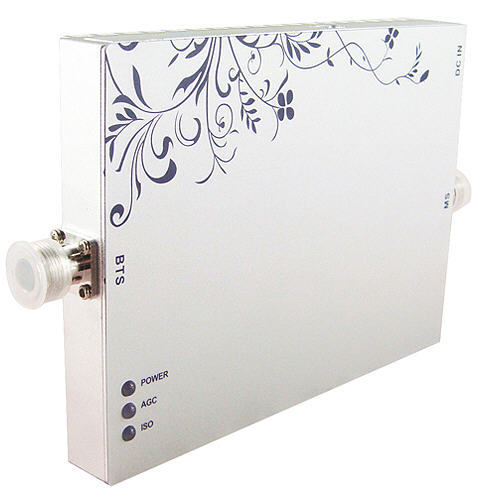

23dBm Dcs 1800MHz Mini Line Amplifier Cell Phone Signal Repeater Booster (GW-23LAD)

Item No.: 00127
Description Specifications
Description

Model:
GW-23LAD


Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls
2. Compact size, low power consumption, easy installation, great cover
Expansion and extention of the signal of base station
Optimization of the quality of the signal and source
3. Cover about 500~3000 m² without block or obstruct
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Antenna isolation testing,Prevent the oscillation
7. Support system CDMA450, LTE700, LTE800, iDEN, CDMA800/GSM850,
GSM900, EGSM, AWS1700, DCS1800, PCS1900,WCDMA, LTE2600,etc

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Frequency Range Uplink Downlink
GSM 900 1710-1785MHz 1805-1880MHz
Max. Gain 25dB 30dB
Max. Output Power 0dBm 23dBm
Band width Wide Band
Manual Gain Control 31dB / 1dB Step
Automatic Gain Control >20dB
Ripple in-band ≤ 6dB
Return loss ≤ -10dB
Noise Figure ≤ 6dB
Spurious Emission
& Intermodulation
9KHz~1GHz ≤ -36dBm
  1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Power Supply AC100-240V,DC9V/3A
Power LED Power indicator
ISO LED Red Autoexcitation or High Power
  Green Standard
AGC LED Off Low Power or No power
  Green Standard
  Red Full Signal,  ALC On
Mechanical Specification
RF Connector N-Female
Impedance 50 ohm
Humidity < 90%
Operating Temperature -10°C ~55°C
Environment Conditions IP40
Size 204mm×128mm×27mm
Weight < 1.5 Kg
