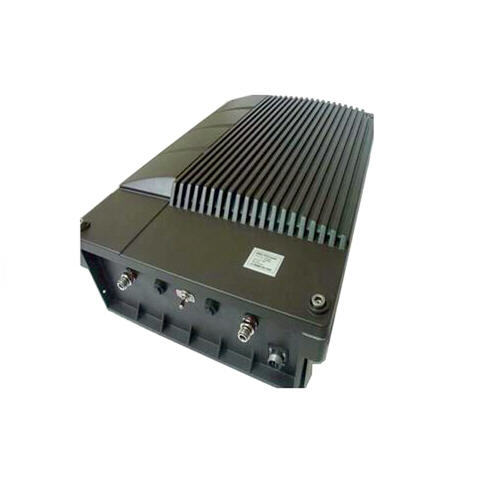

26dBm Dual Band 1800MHz+3G Digital Repeater/Signal Amplifier /Mobile Booster (GW-26DRDW)

Item No.: 00064
Description Specifications
Description

Model:
GW-26DRDW

Features:
· Aluminum-alloy IP65 casing has high resistance to dust, water and corroding;
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.

Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.

Specifications



Item 1800 MHz 2100 MHz
Medium Medium
DL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 1805 – 1880 MHz (20 MHz freq window) 2135 - 2150 MHz
Input port repeater max -55 dBm -55 dBm
Output port repeater max 26 dBm 26 dBm
Gain max 81 dB 81 dB
Power Adjustment 31 step / 1 dB 31 step / 1 dB
Isolation Min (dB) 84 84

UL
Repeater type Digital Filter Repeater (DFR), minimum 3 sub slot band Digital Filter Repeater (DFR), minimum 3 sub slot band
Frequency Work 1710 – 1775 MHz (20 MHz freq window) 1945 - 1960 MHz
Input port repeater max -65 dBm -65 dBm
Output port repeater max 16 dBm 16 dBm
Gain max 81 dB 81 dB
Power Adjustment 31 step / 1 dB 31 step / 1 dB
Isolation Min (dB) 84 84

VSWR  1.1<=x<1.4 1.1<=x<1.4
Inter-modulation Max -37dbm or -80dbc Max -37dbm or -80dbc
Spurious Emission Max -37dBm at +/- 750 kHz Max -37dBm at +/- 750 kHz
I/O Impedance  50 ohm 50 ohm
Noise Figure Max 5dB Max 5dB
Group Time Delay  Max 4µS Max 4µS
Temperature Range  -25 degree Celsius to +55 degree Celsius -25 degree Celsius to +55 degree Celsius
Relative Humidity  Max 95% Max 95%
MTBF  Min. 100000 hrs Min. 100000 hrs

Connector Type N-female N-female
ICS No No
ALC Yes Yes
AGC Yes Yes
AGC Control Range  Min 40dB (+/-1dB) Min 40dB (+/-1dB)
Gain Control Range  31 step (1dB Step) 31 step (1dB Step)

NMS based on Data service (include modem (2G/3G or 2G only (GSM/DCS or GSM only)*)) Yes Yes
GUI Yes Yes

Power Consumption  50 W 50 W
Power Supply Type Switching Regulator Switching Regulator
UPS with casing (IP 65, repeater inside) Need Need
UPS Capacity 4 hours 4 hours

Antenna system (include accessories)
     Donor
Type Yagi (pig tailed N-female 30 cm) Yagi (pig tailed N-female 30 cm)
Gain > 18 dBi > 18 dBi
Pole antenna (Ø 2" aluminium include bracket)
     Serving
Type Sectoral Sectoral
Gain > 17 dBi > 17 dBi
Pole antenna (Ø 5" aluminium include bracket) 3 meter 3 meter

Installation part
Cable RG8 length 30 m 30 m
Connector N-male RG8 2 pcs 2 pcs
MCB with box 2 Amp 2 Amp
Power cable 3wire w/ stop contact 10 meter 10 meter
Installation local material (ties cable, rubber, isolatif 3M, sticker Isat, cable clamp etc) 2 package 2 package
