3G WCDMA Cell Phone Signal Boosters Kit Cellular Repeater Outdoor Omni Antenna

Item No.: 00209
Description Specifications Application Diagram
Description


Installing the Warship Signal Booster Kit is very easy.

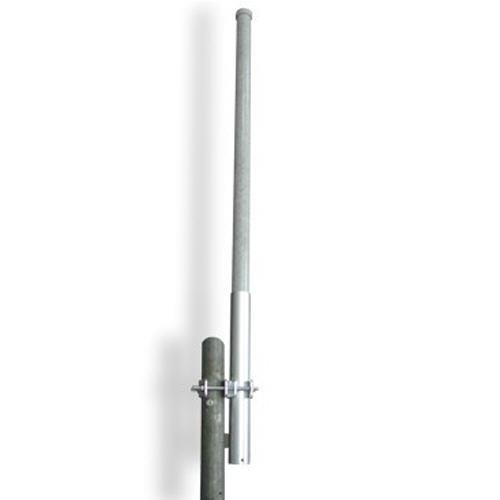

To start, mounting the Marine Omni directional antenna, as high up as possible on the boat or marine . Run the attached cable into the boat and connect the cable to the signal amplifier's Outside Antenna port. To the Inside Antenna port, connect the inside antenna cable and run to the inside panel antenna, which you'll mount either on the ceiling or the wall in the location where you'll be using your mobile devices . Turn on the repeater and you should immediately start receiving boosted signal.


Description:

The Warship Signal Booster Kit is the best kit for boosting cell signal in your boat or marine craft.
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Cell Phone Signal Booster series is an ideal solution for wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The repeater improves mobile signals with no negative impact on human health.

Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. improve mobile signals for much better phone call quality and smoother data transmission.
7. High linear design, ALC function design, low interference to BTS.
8. Support any cellular devices (voice & data & video)
9. Wide band signal booster, or customize selective band booster.
10.This booster also has an automatic Level control (ALC) feature that will reduce the output power of the booster if oscillation is detected.
11.Extended phone battery life. (Your phone does not need to put out as much power due to improved reception.)

Advantages:
1. can customize the Cover Image on the Cell Phone Signal Booster,  design private styles

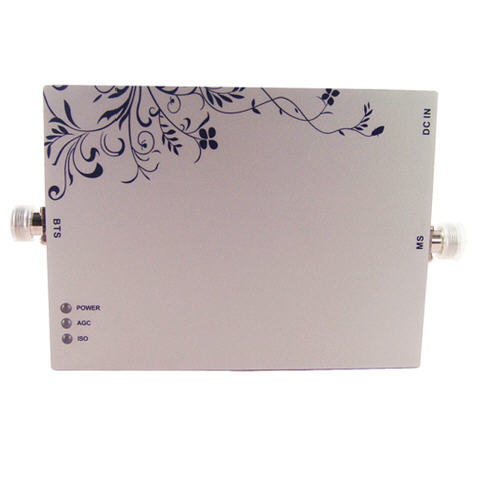

2. If there are strong input signal or severe self oscillation, ISO LED is red.
3. If there are good input signal, AGC LED is green.

Standard Package:
1)  AC90-264V, DC9V/3A power supply adapter 1PCS
2)  AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3)  Installation kit 1PCS
4)  User manual 1PCS

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Marine, houseboat

Specifications
Frequency Range Uplink Downlink
3G 2100 1920 - 1980MHz 2110 - 2170MHz
Max. Gain 70dB 75dB
Max. Output Power 23dBm 20dBm
Band width Wide Band
Manual Gain Control 31dB / 1dB Step
Automatic Gain Control >30dB
Ripple in Band ≤ 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products 9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
Spurious Emission 9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50 ohm
Power Supply AC 90-264V,DC 9V/3A
Power LED Power indicator
ISO(Alarm LED) Red Self oscillation or Strong input signal
Green Normal
Mechanical Specification
RF Connector N-Female
Switch Power Switch
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -20°C ~ +55°C
Environment Conditions IP40
Installation Type Wall Installation
Size 204mm×128mm×27mm
Weight < 1.5Kg
Application Diagram
