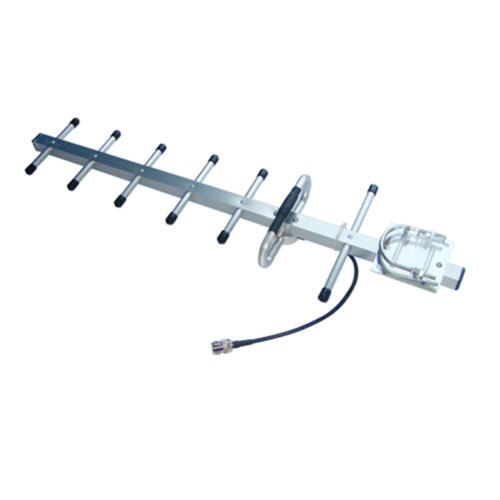

450MHz 13dBi Yagi Antenna (GW-YAGI450-13D)

Item No.: 00180
Description Specifications
Description

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation

Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Specifications
ELECTRICAL
Model
ELECTRICAL
Model GW-YAGI450-13d
Frequency Range 450-470-MHz
Bandwidth 20-MHz
Gain 13-dBi
Beamwidth H: 40- °E: 36- °
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 –W
Nominal Impedance 50 –Ω



MECHANICAL
Connector­­­ N female or customized
Dimension 1.1-M
Weight 1.1-KG
Element 8
Material Aluminum Alloy
Rated Wind Velocity 60-m/s
Mounting Kits U bolts
Frequency Range 450-470-MHz
Bandwidth 20-MHz
Gain 13-dBi
Beamwidth H: 40- °E: 36- °
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 –W
Nominal Impedance 50 –Ω



MECHANICAL
Connector­­­ N female or customized
Dimension 1.1-M
Weight 1.1-KG
Element 8
Material Aluminum Alloy
Rated Wind Velocity 60-m/s
Mounting Kits U bolts
