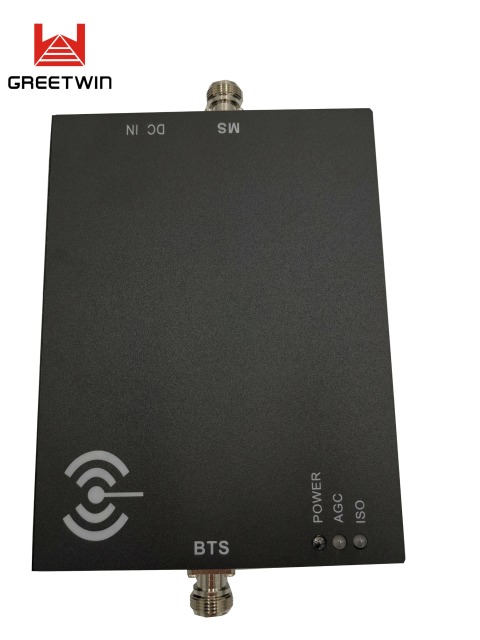

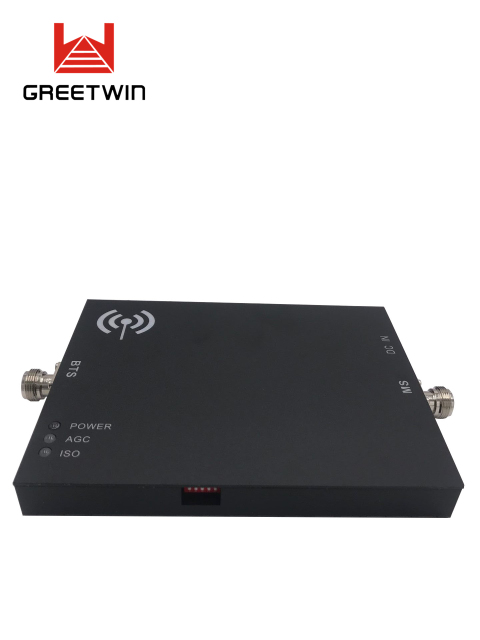

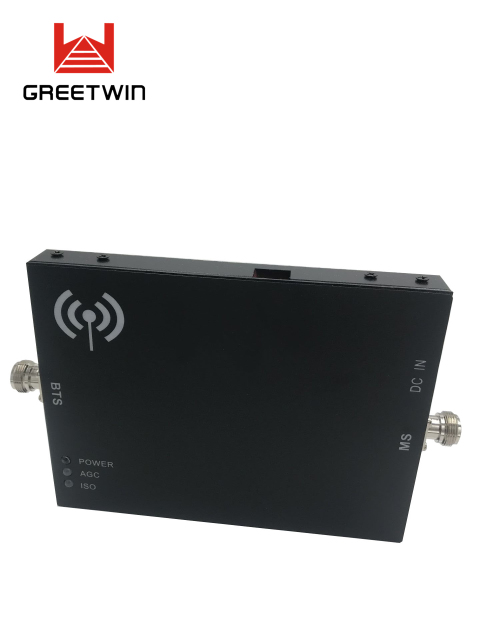

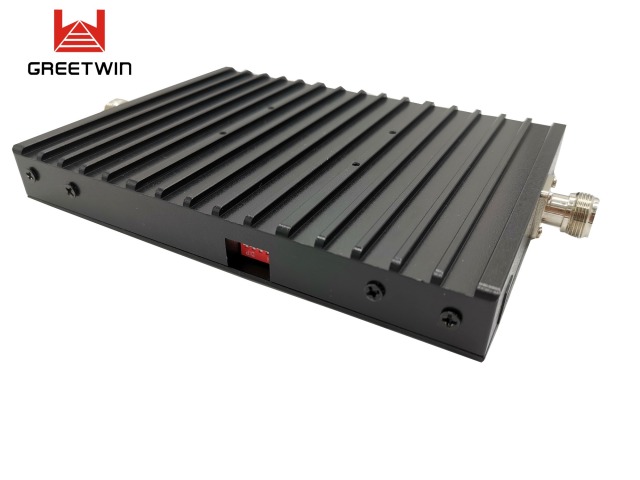

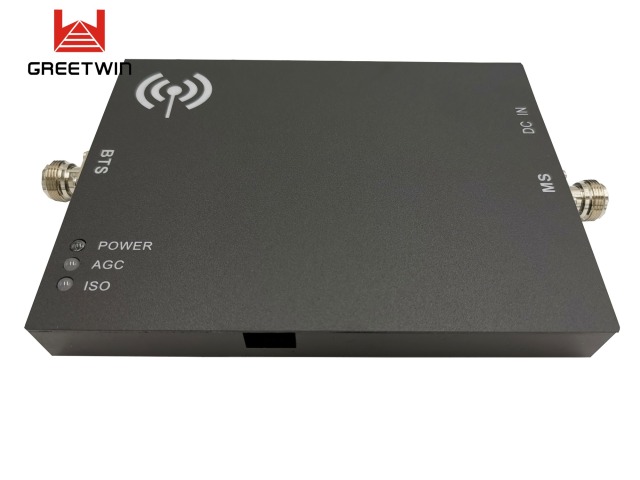

Mini 25dBm GSM900 Single Band Cell Phone Signal Booster for Home

Item No.: GW-25HG
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
    Expansion and extending of the signal of base station.
Description
Description

Product Description

1,Product Details.jpg

Mini 25dBm GSM900 Single Band Cell Phone Signal Booster for Home

Frequency Range

Uplink

Downlink

GMHz

890-915MHz

935-960MHz

Gain

70dB±2

75dB±2

Output Power

17dBm±2

25dBm±2

Band width

Wide Band

Manual Gain Control

31dB / 1dB Step

Automatic Gain Control

>30dB

Ripple in Band

≤ 2dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Intermodulation

≤ -40dBc

Spurious Emission

9KHz~1GHz

≤ -36dBm



1~12.75GHz

≤ -30dBm

Time Delay

≤ 1.5 μs

Frequency stability

≤ 0.01ppm

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-264V,DC 9V/5A

Power LED

Power indicator

Alarm LED

Red

Self oscillation or Strong input signal



Green

Normal

Mechanical Specification

RF Connector

N-Female

Switch

Power Switch,Manual Gain Control Switch

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

205*128*15mm

Weight

< 1Kg



2,Product Display.jpg









Signal Booster8.jpg

description:

Indoor Signal Booster series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity.

It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal,

and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.



Features:

1. Cost effective solution for weak signal zones, reduce drop/off calls.

2. Compact size, low power consumption, easy installation, great cover.

    Expansion and extending of the signal of base station.

    Optimization of the quality of the signal and source

3. Cover about 2500-4000m² without block or obstruct.

4. High linear design, ALC function design, low interference to BTS.

5. Support any cellular devices (voice & data & video)

6. Wide band signal booster, or customize selective band booster.







Standard Package:

1) AC90-264V, DC 9V/5A power supply adapter 1PCS

2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS

3) Installation kit 1PCS

4) User manual 1PCS



Application Diagram:

640  (107)__


Product Recommended

4,Product Recommended.jpg


Company Information

5,Company Information.jpg





6,Exhibition and customers.jpg


Certifications



Payment and Shipping



FAQ


      Q1. Why is there still no signal after installing the equipment?

            1. Check the power on booster and power supply.

            2. Check the connector of outdoor antenna is tight or not.

            3. Check the connectors of RF cable are tight or not.

            4. Check the outdoor signal is strong enough or not.

            5. Check to make sure the antenna is installed correctly.

            6. Check the connector of indoor antenna is tight or not.

            7. Check the cable type is suitable or not.



      Q2. Why the signal strength is too weak on the edge of area?

            1. Check the outdoor signal and antenna direction.

            2. Check booster is full gain or not.

            3. Check all of the connectors are tight.

            4. Change the location of outdoor/indoor antenna.

            5. Check the cable type is suitable or not.

            6. Deploy more indoor antennas.



      Q3. After running booster, why the signals are not stable?

            1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED

                of booster to make sure alarms are green.

            2. Checking the signals from donor antenna whether to be stable or not?

            3. Connect the system again if it is incorrect connection.



      Q4. Why the booster power LED is not bright?

            1. Checking the input AC power range indicated on power adapter whether is corresponding to the local

                power system.

            2. Checking the power adapter whether connect the equipment correctly and stably or not.

            3. Checking the power adapter whether damage or not. To test output voltage whether be corresponding to

                that indicated on power adapter or not by multimeter
