Portable light Uav Drone Jammer, Built-in high gain directional antenna, Built-in 4 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (500-1200m) can be comprehensive and stable uninterrupted shielding of the 900MHz GPSL1, WIFI 2.4G, and 5.8G bands in the UAV frequency band.
Drone Jammer Parameter
|Channel||Working Frequency||Output power(±1dBm)|
|CH1||2.4G||2400-2485MHz||44.7 dBm (30W)|
|CH3||GPSL1, Glonass, BDS||1575.4±2.5MHZ(1.5G-GPS)||44.7 dBm (30W)|
|CH4||2.4G||2400-2485MHz||44.7 dBm (30W)|
|CH5||Remote||860-930MHz||44.7 dBm (30W)|
|Power supply mode||Inside battery 1h: 28V, 5A;|
|Or External battery|

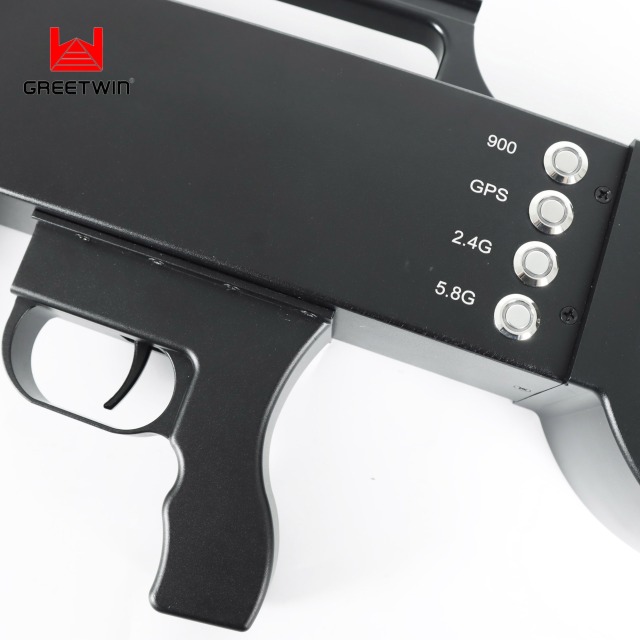

|Turn on/off||5 Independent Switch for each band|
|Battery working time||30 minutes|
|Working temperature||-20ºC to +55ºC|
|Weight||4.3KG, Packing Weight:7KG|
|Directional Panel Antenna||8dBi|
*More Customized requirements of frequency please Click it to contact us!
